| Server Model | Dell Poweredge R760 Server |
| Processor | Up to two 4th Generation Intel Xeon Scalable processor with up to 56 cores per processor and with optional Intel® QuickAssist Technology |
| Memory | • 32 DDR5 DIMM slots, supports RDIMM 8 TB max, speeds up to 4800 MT/s • Supports registered ECC DDR5 DIMMs only |
| Storage controllers | • Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i • Internal Boot: Boot Optimized Storage Subsystem(BOSS-N1): HWRAID 2 x M.2 NVMe SSDs or USB • External HBA (non-RAID): HBA355e • Software RAID: S160 |
| Drive Bays | Front bays: • Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB • Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB • Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB • Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.64 TB Rear bays: • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB • Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB |
| Power supplies | • 2800 W Titanium / 2400 W Platinum / 1800W Titanium / 1400 W Platinum / 1100 W Titanium / 1100 W LVDC / 800 W Platinum / 700 W Titanium • Hot swap redundant options available |
| Cooling Options | Air cooling; Optional Direct Liquid Cooling (DLC) |
| Fans | Standard (STD) fans / High performance Silver (HPR) / Gold (VHP) fans; Up to 6 hot plug fans |
| Dimensions | Height: 86.8 mm (3.41"); Width: 482 mm (18.97"); Depth: 772.13 mm (30.39") with bezel |
| Security | Cryptographically signed firmware, Secure Boot, Secure Erase, Silicon Root of Trust, TPM 2.0 FIPS certified |
| GPU Options | Up to 2 x 350 W DW and 6 x 75 W SW |
| Warranty | 3 years |

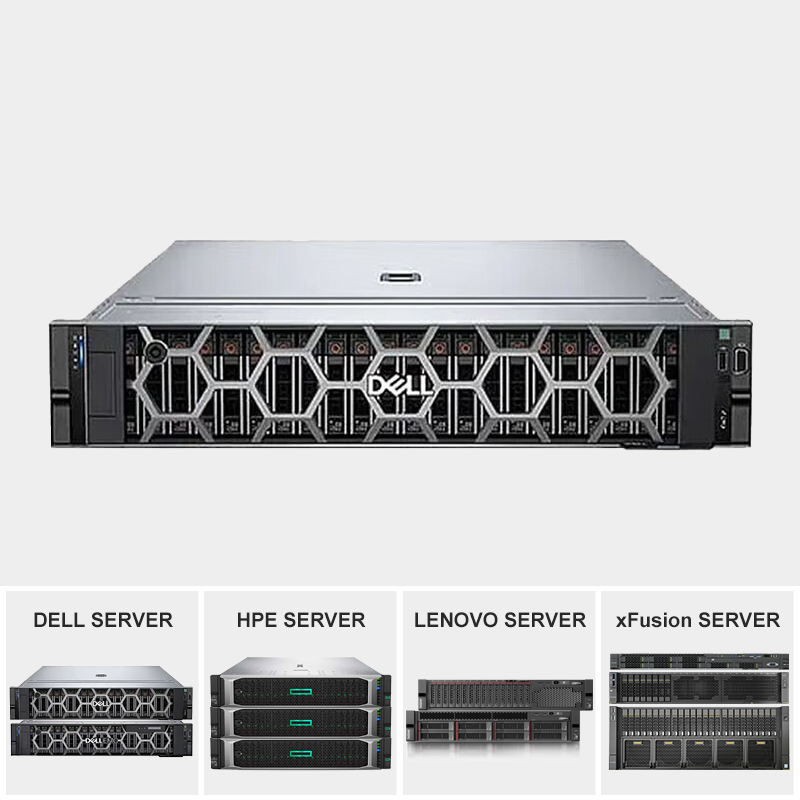

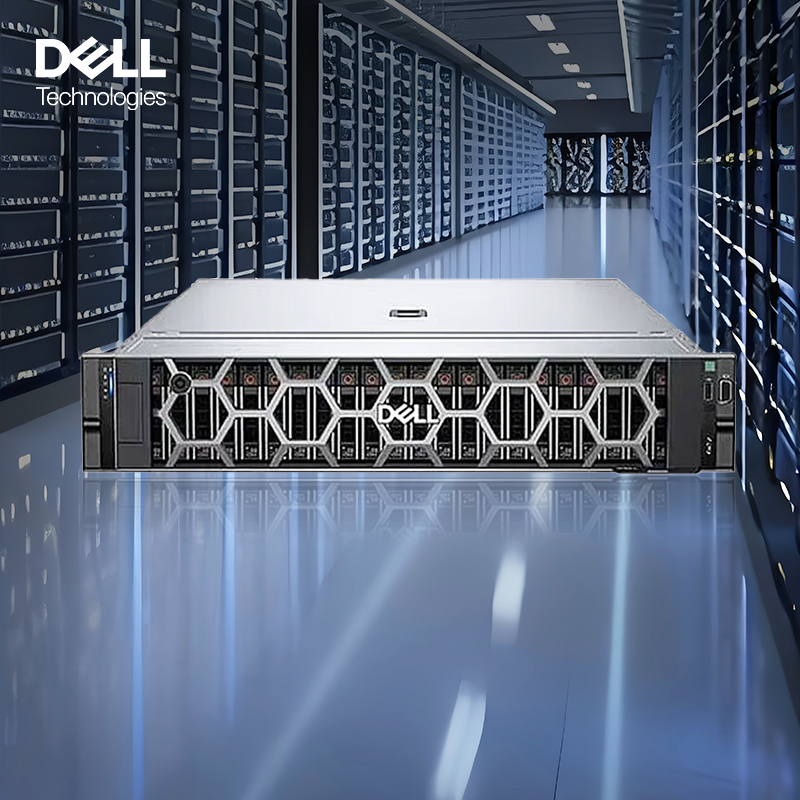

Dell PowerEdge R760 rack server
Provides performance and versatility as needed to address your most demanding applications. The new PowerEdge R760 is a 2U, two-socket rack server. Gain the performance you need with this full-featured enterprise server, designed to optimize even the most demanding workloads like Artificial Intelligence and Machine Learning.
