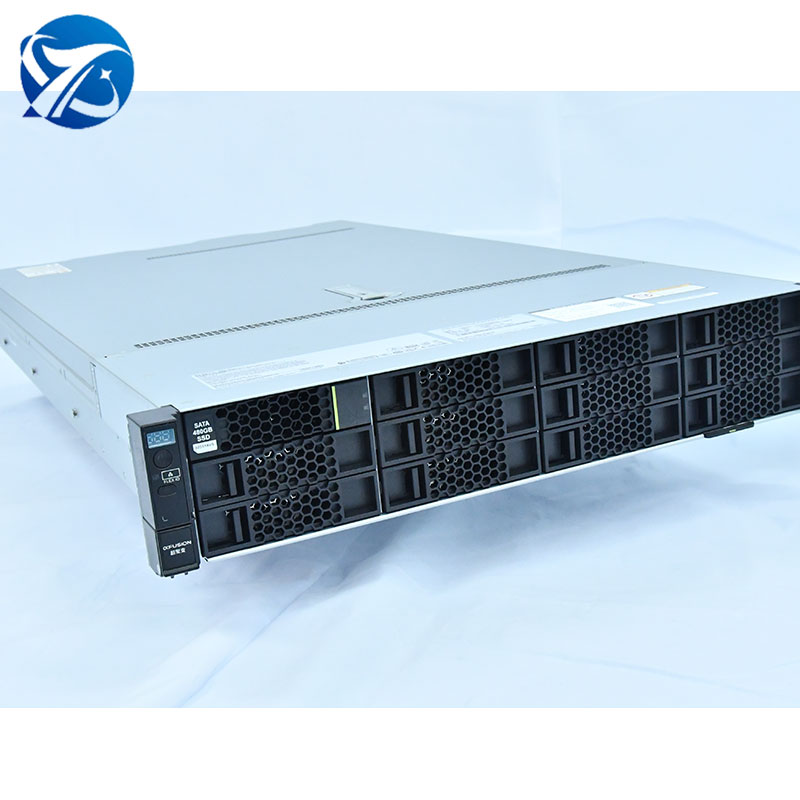

The FusionServer 2288H V6 is a 2U 2-socket rack server with flexible configurations, which can be widely used for cloud computing, virtualization, database, and big data workloads.
| Server Model | FusionServer 2288H V6 |
| Form Factor | 2U rack server |
| Processors | One or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), TDP up to 270 W |
| Local Storage | 8-31 x 2.5-inch SAS/SATA/SSD; 12-20 x 3.5-inch SAS/SATA; 4/8/16/24 NVMe SSDs; Dual M.2 SSDs |
| RAID Support | RAID 0, 1, 10, 1E, 5, 50, 6, or 60; optional supercapacitor for cache protection. |
| Network | OCP 3.0 NICs, two FlexIO card slots supporting two OCP 3.0 network adapters. |
| PCIe Expansion | Max 14 PCIe 4.0 slots (1 dedicated for RAID, 2 for FlexIO/OCP 3.0, 11 standard slots). |
| Chip Set | Intel C621A |
| Management | iBMC chip, Redfish, SNMP, IPMI 2.0, HTML5/VNC KVM; Optional FusionDirector software. |
| Operating Systems | Windows Server, SUSE Linux, VMware ESXi, Red Hat, CentOS, Oracle, Ubuntu, Debian, etc. |
| Fan Modules | Four hot-swappable counter-rotating fan modules in N+1 redundancy mode. |
| Dimensions | 86.1 mm x 447 mm x 790 mm (3.39 in. x 17.60 in. x 31.10 in.) |
| Power Supply | Platinum/Titanium PSUs: 900W, 1500W, 2000W, 3000W AC; HVDC and -48V DC options supported. |
As a leading integrated IT solutions provider, we combine cutting-edge manufacturing, dedicated R&D facilities, and a robust global distribution network to deliver comprehensive end-to-end infrastructure services. Our team of highly skilled professionals and certified engineers brings 15 years of expertise in designing, deploying, and maintaining mission-critical IT environments.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
