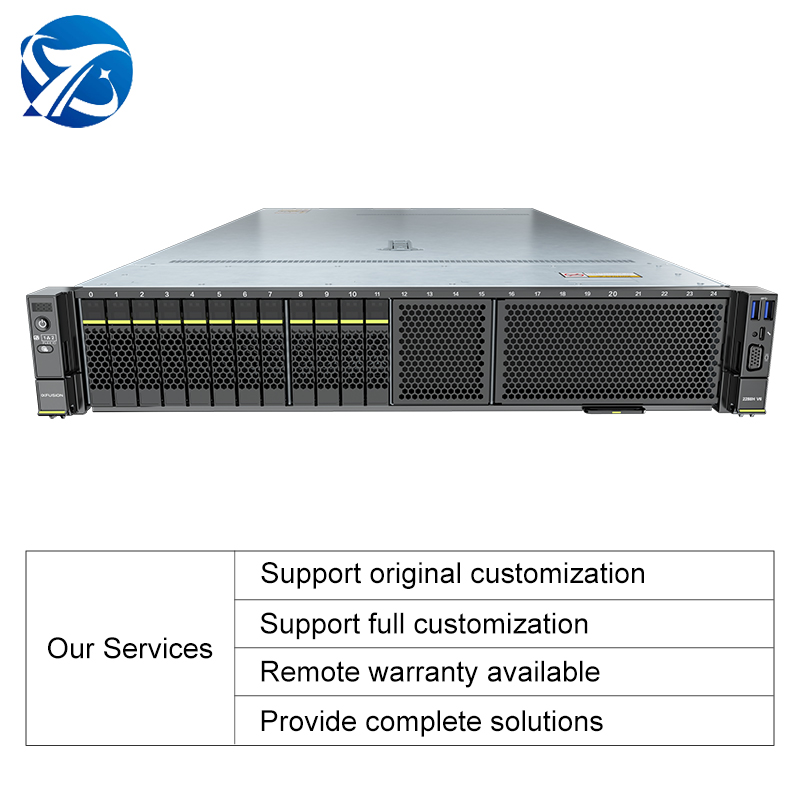

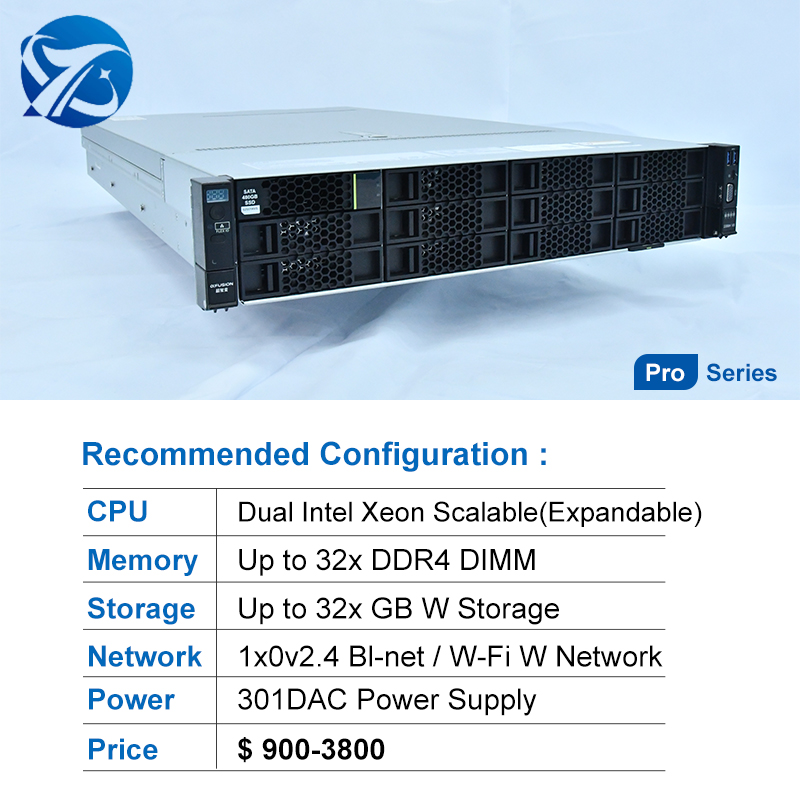

New xFusion Fusionserver 2288H V6 2U Cloud Server 12x3.5-inch Drive Xeon 2* 4310 2288H V6 2U 2-socket Computer Rack Server

Product Description

🖥️ Product Display
FusionServer 2288H V6 is a 2U 2-socket rack server with flexible configurations, which can be widely used for cloud computing, virtualization, database, and big data workloads. The 2288H V6 can be configured with 2-socket Intel® Xeon® Scalable processors, 32 DDR4 RAM, 14 PCIe expansion slots, and supports large local storage resources. It integrates patented technologies such as DEMT, intelligent power consumption management, FDM intelligent fault management, and optional FusionDirector full lifecycle management software, which can effectively reduce operations cost, improve return on investment.
📝 Product Description
FusionServer 2288H V6
⚙️ Product Parameters
Server Model FusionServer 2288H V6
Form Factor 2U rack server
Processors One or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), TDP up to 270 W
Local Storage Supports various drive configurations and hot swappable:
• 8-31 x 2.5-inch SAS/SATA/SSD drives
• 12-20 x 3.5-inch SAS/SATA drives
• 4/8/16/24 NVMe SSDs
• 45 x 2.5-inch drives or 34 full-NVMe SSDs
Supports flash storage: Dual M.2 SSDs
RAID support Supports RAID 0, 1, 10, 1E, 5, 50, 6, or 60, optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration.
Network Provides expansion capability of multiple types of networks. Provides OCP 3.0 NICs. The two FlexIO card slots support two OCP 3.0 network adapter respectively, which can be configured as required. Hot swappable function supported.
PCIe Expansion Provides a maximum of fourteen PCIe 4.0 slots, including one PCIe slot dedicated for RAID card, two FlexIO card slots dedicated for OCP 3.0, and eleven PCIe 4.0 slots for standard PCIe cards.
Chip Set Intel C621A
Management The iBMC chip integrates one dedicated GE management port to provide comprehensive management functions such as fault diagnosis, automated O&M, and hardware security hardening. iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0. Optional FusionDirector management software for full lifecycle management.
Operating Systems Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, etc.
Security Features Power-on password, administrator password, TPM 2.0, security panel, secure boot, and cover opening detection.
Fan Modules Four hot-swappable counter-rotating fan modules in N+1 redundancy mode
Operating Temp 5°C to 45°C (41°F to 113°F) (ASHRAE Classes A1 to A4 compliant)
Dimensions 86.1 mm x 447 mm x 790 mm (3.39 in. x 17.60 in. x 31.10in.)
Power Supply Two hot-swappable PSUs in 1+1 redundancy mode. Options: 900W/1500W/2000W/3000W AC Platinum/Titanium, HVDC, or -48V to -60V DC PSUs.
Server Interior View
Server Rear View
🏢 Company Profile
Office and R&D
As a leading integrated IT solutions provider, we combine cutting edge in-house manufacturing, dedicated R&D facilities, and a robust global distribution network to deliver comprehensive end-to-end infrastructure services. With a team of over 300 highly skilled professionals, including more than 150 certified engineers, we bring 15 years of proven expertise in designing, deploying, and maintaining mission-critical IT environments for enterprises worldwide. We provide authorized computing servers, network storage, network switches, and high-quality accessories including CPUs, RAM, and hard drives.
🌐 Exhibition & Logistics
Exhibition Presence
Packaging 1
Packaging 2
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Frequently Asked Questions
Q1: How soon can I receive a quotation for the server? A: We typically provide a detailed quotation within 24 hours of receiving your inquiry. For urgent requirements, please contact us via priority channels.
Q2: What kind of warranty do you provide for server products? A: Our full machine products generally come with a 3-year replacement warranty. We maintain a complete supply chain to ensure prompt after-sales support.
Q3: Are the components like RAM and Hard Drives original? A: Yes, all memory modules and components are original brand chips. We strictly test every piece of hardware before each delivery to ensure reliability.
Q4: What is the Minimum Order Quantity (MOQ)? A: MOQs vary depending on the specific product model. We strive to meet our customers' requirements and welcome both large enterprise orders and small individual orders.
Q5: Why might there be price differences for seemingly identical hardware? A: While products may look identical externally, internal components and quality grades can differ. We prioritize high-quality internal hardware to support long-term business stability.
Q6: What payment methods do you accept? A: We accept multiple secure payment methods including T/T (Bank Transfer), Credit Cards, and other verified electronic payment platforms to ensure a safe transaction.
