Datrix

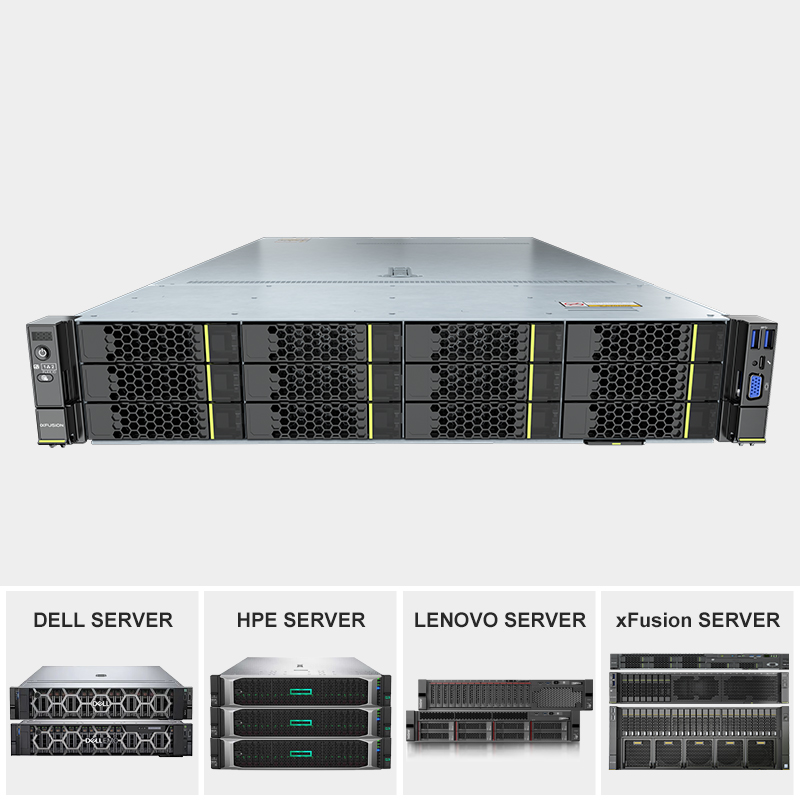

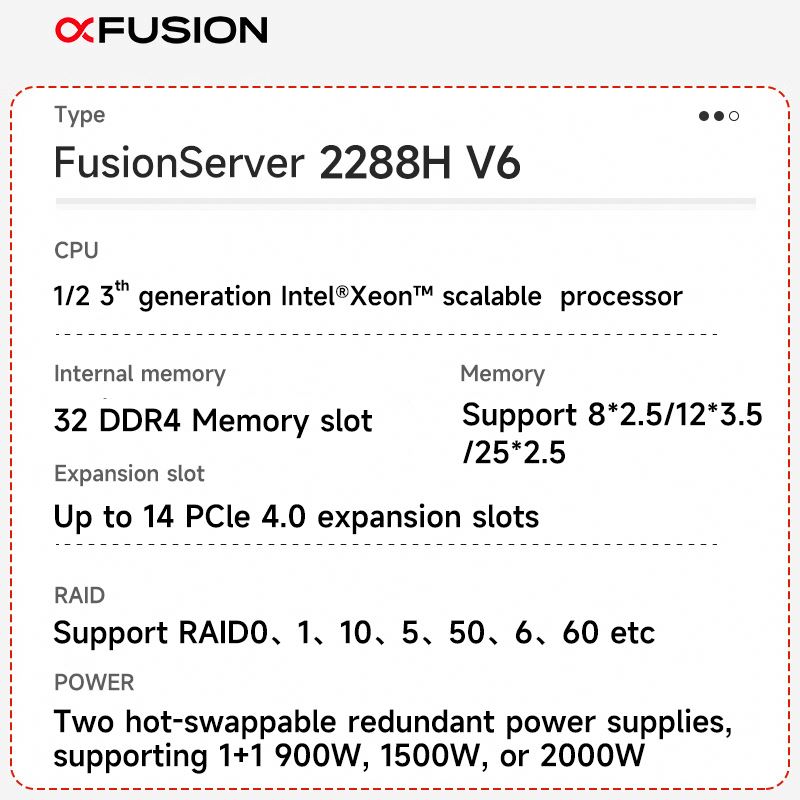

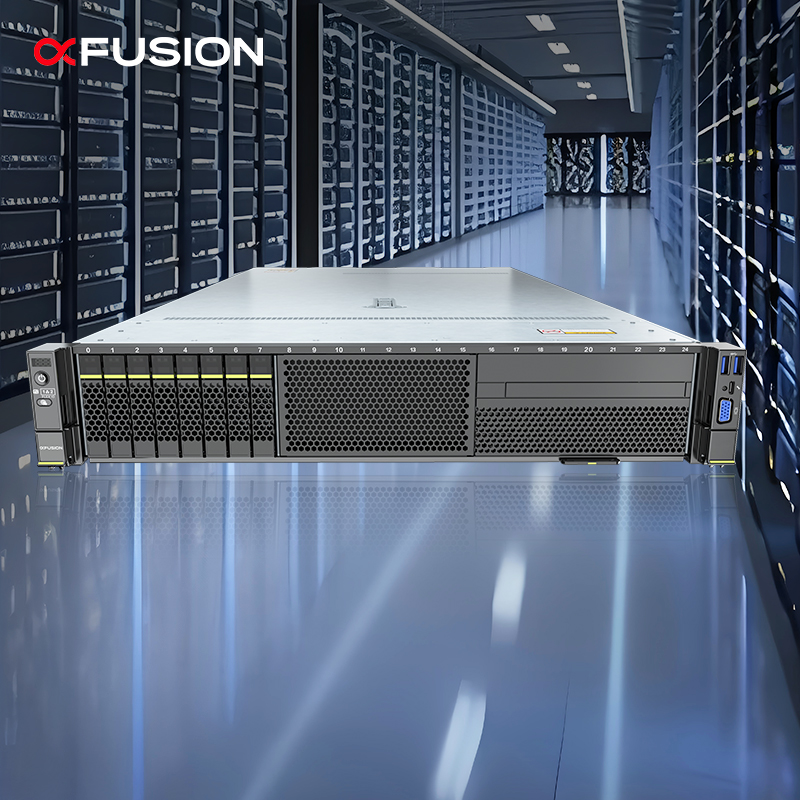

| Server Model | FusionServer 2288H V6 |
| Form Factor | 2U rack server |
| Processors | One or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), TDP up to 270 W |
| Local Storage | Supports 8-31 x 2.5-inch SAS/SATA/SSD; 12-20 x 3.5-inch SAS/SATA; 4/8/16/24 NVMe SSDs; Dual M.2 SSDs |

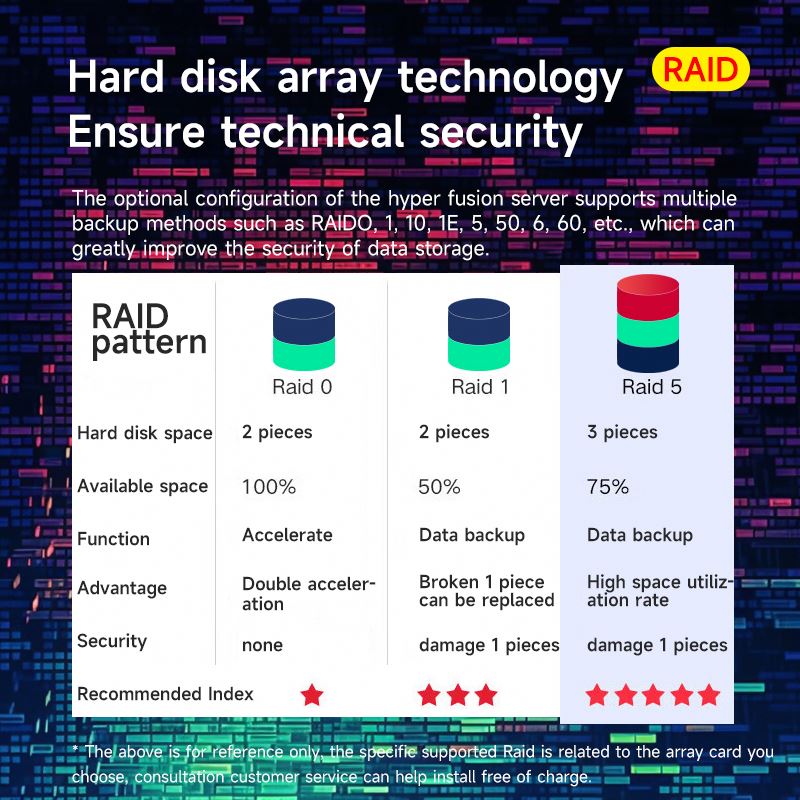

| RAID Support | RAID 0, 1, 10, 1E, 5, 50, 6, 60; Optional supercapacitor for power failure protection |
| Network | OCP 3.0 NICs; Two FlexIO card slots; Hot swappable function supported |
| PCIe Expansion | Maximum fourteen PCIe 4.0 slots (including RAID and OCP 3.0 dedicated slots) |
| Chip Set | Intel C621A |
| Management | iBMC chip, GE management port; Supports Redfish, SNMP, IPMI 2.0, HTML5/VNC KVM; Optional FusionDirector software |
| Operating Systems | Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat, CentOS, Ubuntu, Debian, etc. |
| Power Supply | Two hot-swappable PSUs (1+1 redundancy); 900W/1200W/1500W/2000W/3000W Platinum/Titanium options |
| Dimensions | 86.1 mm x 447 mm x 790 mm (3.39 in. x 17.60 in. x 31.10 in.) |
